使用Python半自动生成Altium原理图封装

前言

放长假了，想搞点钱，对我而言来钱最快的就是帮别人画原理图PCB图了。

不过画了几天发现一个问题：一直以来都自己画自己的，而现在帮别人画，客户发的很多原理图的封装都没有，基本上每画一个图都要画两三个，碰到一些小的还好几分钟就能画完，碰到一些大点的芯片引脚多的很的，自己画一个（配上电脑拉跨debuff）还要十几分钟，在立创EDA上面找的又经常有错，很是不爽

不过得益于AD高版本可以以成文本形式保存原理图文件，使用程序完成任务也就成为了可能。

历程

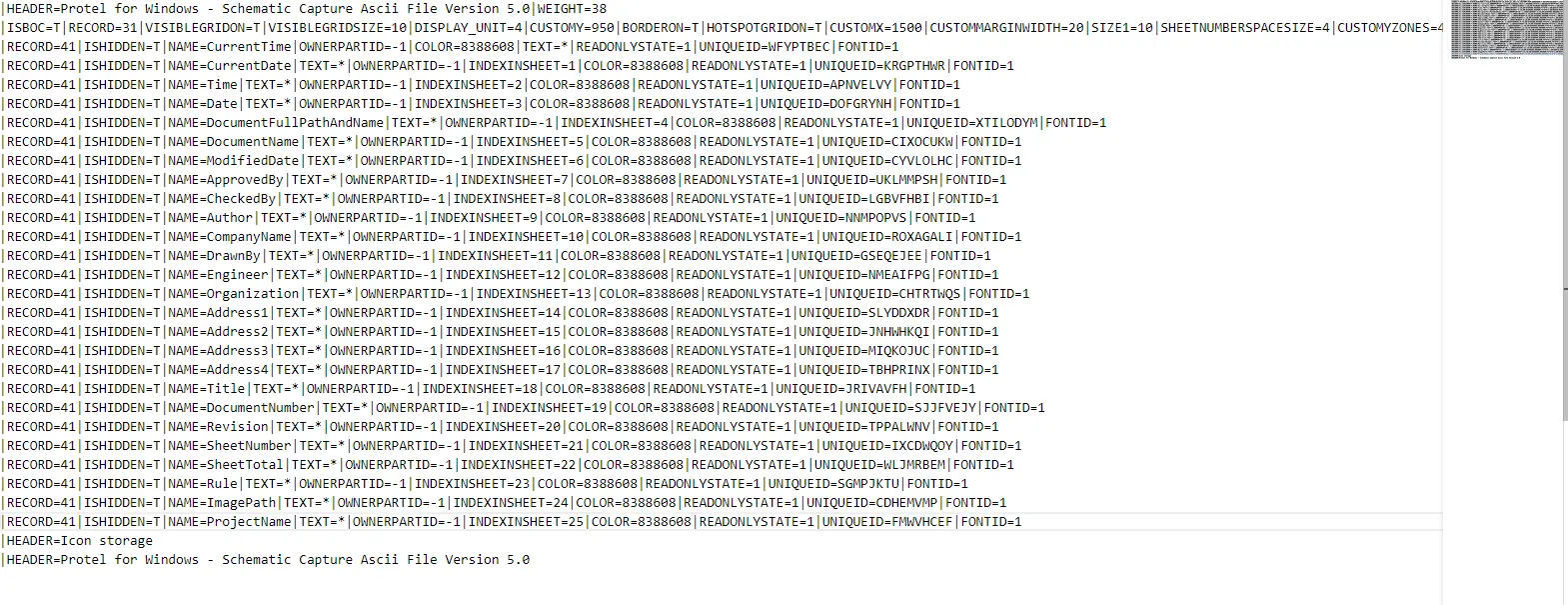

随便新建一个原理图以ASCII保存。打开来可以看见这么一份”模板“，

模板

|HEADER=Protel for Windows - Schematic Capture Ascii File Version 5.0|WEIGHT=38
|ISBOC=T|RECORD=31|VISIBLEGRIDON=T|VISIBLEGRIDSIZE=10|DISPLAY_UNIT=4|CUSTOMY=950|BORDERON=T|HOTSPOTGRIDON=T|CUSTOMX=1500|CUSTOMMARGINWIDTH=20|SIZE1=10|SHEETNUMBERSPACESIZE=4|CUSTOMYZONES=4|USEMBCS=T|FONTIDCOUNT=1|SNAPGRIDSIZE=10|SHEETSTYLE=5|SYSTEMFONT=1|HOTSPOTGRIDSIZE=4|FONTNAME1=Times New Roman|TITLEBLOCKON=T|AREACOLOR=16317695|SNAPGRIDON=T|CUSTOMXZONES=6
|RECORD=41|ISHIDDEN=T|NAME=CurrentTime|OWNERPARTID=-1|COLOR=8388608|TEXT=*|READONLYSTATE=1|UNIQUEID=WFYPTBEC|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=CurrentDate|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=1|COLOR=8388608|READONLYSTATE=1|UNIQUEID=KRGPTHWR|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Time|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=2|COLOR=8388608|READONLYSTATE=1|UNIQUEID=APNVELVY|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Date|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=3|COLOR=8388608|READONLYSTATE=1|UNIQUEID=DOFGRYNH|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=DocumentFullPathAndName|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=4|COLOR=8388608|READONLYSTATE=1|UNIQUEID=XTILODYM|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=DocumentName|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=5|COLOR=8388608|READONLYSTATE=1|UNIQUEID=CIXOCUKW|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=ModifiedDate|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=6|COLOR=8388608|READONLYSTATE=1|UNIQUEID=CYVLOLHC|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=ApprovedBy|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=7|COLOR=8388608|READONLYSTATE=1|UNIQUEID=UKLMMPSH|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=CheckedBy|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=8|COLOR=8388608|READONLYSTATE=1|UNIQUEID=LGBVFHBI|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Author|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=9|COLOR=8388608|READONLYSTATE=1|UNIQUEID=NNMPOPVS|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=CompanyName|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=10|COLOR=8388608|READONLYSTATE=1|UNIQUEID=ROXAGALI|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=DrawnBy|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=11|COLOR=8388608|READONLYSTATE=1|UNIQUEID=GSEQEJEE|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Engineer|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=12|COLOR=8388608|READONLYSTATE=1|UNIQUEID=NMEAIFPG|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Organization|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=13|COLOR=8388608|READONLYSTATE=1|UNIQUEID=CHTRTWQS|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Address1|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=14|COLOR=8388608|READONLYSTATE=1|UNIQUEID=SLYDDXDR|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Address2|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=15|COLOR=8388608|READONLYSTATE=1|UNIQUEID=JNHWHKQI|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Address3|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=16|COLOR=8388608|READONLYSTATE=1|UNIQUEID=MIQKOJUC|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Address4|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=17|COLOR=8388608|READONLYSTATE=1|UNIQUEID=TBHPRINX|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Title|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=18|COLOR=8388608|READONLYSTATE=1|UNIQUEID=JRIVAVFH|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=DocumentNumber|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=19|COLOR=8388608|READONLYSTATE=1|UNIQUEID=SJJFVEJY|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Revision|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=20|COLOR=8388608|READONLYSTATE=1|UNIQUEID=TPPALWNV|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=SheetNumber|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=21|COLOR=8388608|READONLYSTATE=1|UNIQUEID=IXCDWQOY|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=SheetTotal|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=22|COLOR=8388608|READONLYSTATE=1|UNIQUEID=WLJMRBEM|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=Rule|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=23|COLOR=8388608|READONLYSTATE=1|UNIQUEID=SGMPJKTU|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=ImagePath|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=24|COLOR=8388608|READONLYSTATE=1|UNIQUEID=CDHEMVMP|FONTID=1
|RECORD=41|ISHIDDEN=T|NAME=ProjectName|TEXT=*|OWNERPARTID=-1|INDEXINSHEET=25|COLOR=8388608|READONLYSTATE=1|UNIQUEID=FMWVHCEF|FONTID=1
|HEADER=Icon storage
|HEADER=Protel for Windows - Schematic Capture Ascii File Version 5.0

文本是OLE复合文档,有开发需要可以在这个仓库里查看。

Altium schematic file formathttps://github.com/vadmium/python-altium/blob/master/format.md

测试放置一个3PIN可以看到多了这么一部分

|RECORD=1|PARTIDLOCKED=T|COLOR=128|SOURCELIBRARYNAME=Miscellaneous Devices.SchLib|OWNERPARTID=-1|DISPLAYMODECOUNT=1|INDEXINSHEET=26|DESIGNITEMID=3PIN|PARTCOUNT=2|LIBREFERENCE=3PIN|LIBRARYPATH=*|LOCATION.X=440|AREACOLOR=11599871|TARGETFILENAME=*|CURRENTPARTID=1|LOCATION.Y=450|UNIQUEID=JDTBOSLP
|RECORD=14|ISNOTACCESIBLE=T|LOCATION.X=440|CORNER.Y=450|ISSOLID=T|OWNERPARTID=1|OWNERINDEX=27|CORNER.X=470|COLOR=128|AREACOLOR=11599871|LOCATION.Y=410
|DESIGNATOR=1|RECORD=2|NAME=1|LOCATION.X=440|PINLENGTH=20|OWNERPARTID=1|PINCONGLOMERATE=42|ELECTRICAL=4|OWNERINDEX=27|FORMALTYPE=1|LOCATION.Y=440|SWAPIDPIN=1
|ISHIDDEN=T|RECORD=41|LOCATION.X=440|NAME=PinUniqueId|OWNERPARTID=-1|OWNERINDEX=29|TEXT=BNSVPWEQ|COLOR=8388608|LOCATION.Y=440|FONTID=1
|DESIGNATOR=2|RECORD=2|NAME=2|LOCATION.X=440|PINLENGTH=20|OWNERPARTID=1|PINCONGLOMERATE=42|ELECTRICAL=4|OWNERINDEX=27|FORMALTYPE=1|LOCATION.Y=430|SWAPIDPIN=2
|ISHIDDEN=T|RECORD=41|LOCATION.X=440|NAME=PinUniqueId|OWNERPARTID=-1|OWNERINDEX=30|TEXT=DQCSMDTO|COLOR=8388608|LOCATION.Y=430|FONTID=1
|DESIGNATOR=3|RECORD=2|NAME=3|LOCATION.X=440|PINLENGTH=20|OWNERPARTID=1|PINCONGLOMERATE=42|ELECTRICAL=4|OWNERINDEX=27|FORMALTYPE=1|LOCATION.Y=420|SWAPIDPIN=3
|ISHIDDEN=T|RECORD=41|LOCATION.X=440|NAME=PinUniqueId|OWNERPARTID=-1|OWNERINDEX=31|TEXT=TFWBGGDS|COLOR=8388608|LOCATION.Y=420|FONTID=1
|RECORD=34|LOCATION.X=440|NAME=Designator|TEXT=P?|OWNERINDEX=27|OWNERPARTID=-1|COLOR=8388408|INDEXINSHEET=-1|READONLYSTATE=1|LOCATION.Y=450|FONTID=1
|RECORD=41|LOCATION.X=440|NAME=Comment|TEXT=3PIN|OWNERINDEX=27|OWNERPARTID=-1|COLOR=8388608|INDEXINSHEET=-1|UNIQUEID=SIFBYFRD|LOCATION.Y=400|FONTID=1
|OWNERINDEX=27|RECORD=44

可以看出

RECORD =
1：器件开始
2: 引脚
14：长方形（背景）
34：元件标号
41：脚注
44：器件结束
DESIGNATOR：管脚标号

还有像xy坐标，NAME，COLOR等不必多说

接着就是写个python脚本把它们拼起来辣

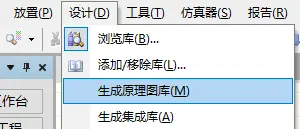

再生成原理图库复制到自己的库就行了

Snipaste_2022-07-17_09-13-24

小说明

放置类型

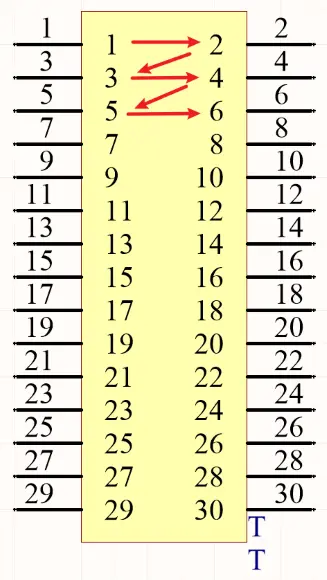

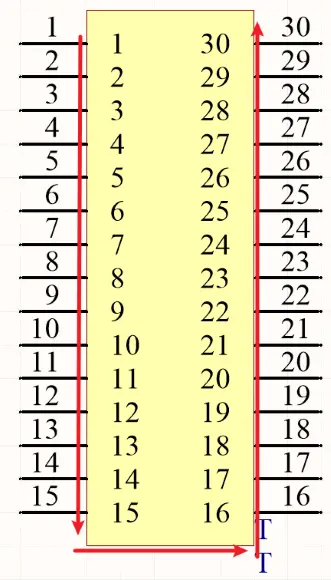

И	凵(常用)	Z

执行效果

Snipaste_2022-07-14_19-18-29

值得注意的点

1. 在“模板”的头部中，WEIGHT代表着剩余的部件量，如果设置的太小当AD读取完后就不会往下读了，就会导致缺这缺那

1	\|HEADER=Protel for Windows - Schematic Capture Ascii File Version 5.0\|WEIGHT=38

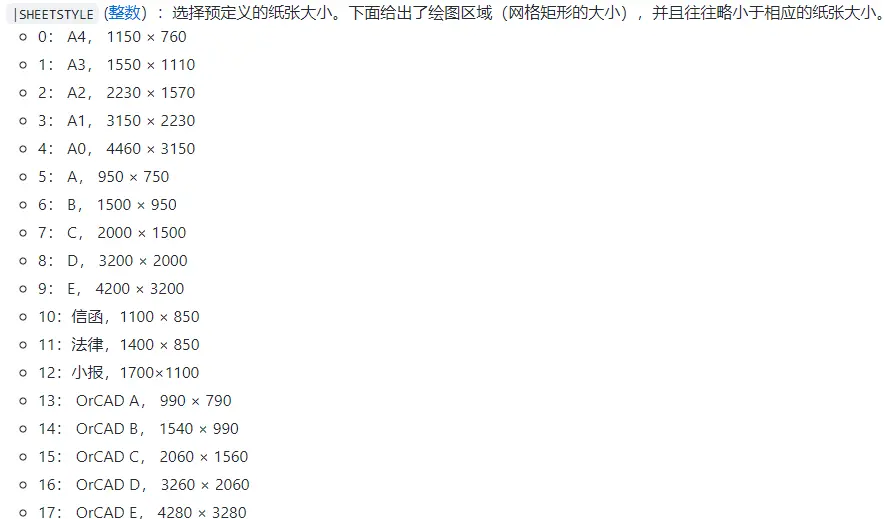

2.同样在“模板”的头部中，第二行中包括了纸张大小等的定义，如果遇到🐞可以适当修改

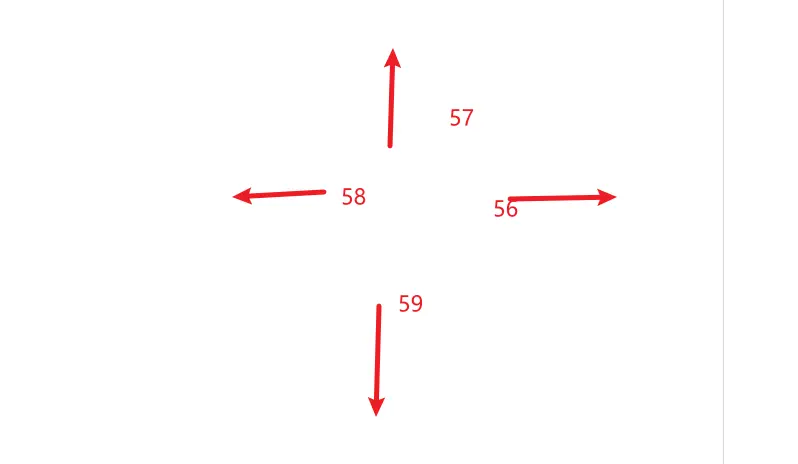

3.引脚方向依据PINCONGLOMERATE的值，连接方向向右时为56，从此每逆时针旋转90°加一

Snipaste_2022-07-14_08-55-25

4.xy坐标必须为不带小数的整数，不然它立马扑街给你看

本文采用署名-非商业性使用-相同方式共享 4.0 国际许可协议，转载请注明出处。
